New vehicle Wheelchair accessible

    Ford ConnectAvance™

    Tourneo Connect Titanium L2 · Petrol · Automatic

    Drive from your wheelchair, or ride up front as a passenger. Up to four seats and room for one or two wheelchairs.

    Book a test drive

    or call 0800 763 645

    See it at our fully accessible showroom: 9 Pacific Rise, Mount Wellington, Auckland

    • Drive from your chairOr ride as front passenger
    • Up to 4 seatsIncludes tip & turn seating
    • 1–2 wheelchair spacesFront or rear positions
    • Automated rampWith manual override

    PRODUCT OVERVIEW

    If you like Ford, you’ll love the Connect Avance™.

    The Ford Connect Avance™ is a new wheelchair-accessible conversion of the Tourneo Connect Titanium. It gives you the choice: drive from your own wheelchair or power chair, or ride up front beside the driver. Either way, the whole family travels together.

    • 4seatsUp to four seated passengers
    • 1–2chairsWheelchair spaces, front or rear
    • 1,490mmEntrance height at the rear door
    • 9.5°Gentle ramp angle for easy access

    THREE WAYS TO TRAVEL

    Drive it. Ride up front.
    Or sit back with the family.

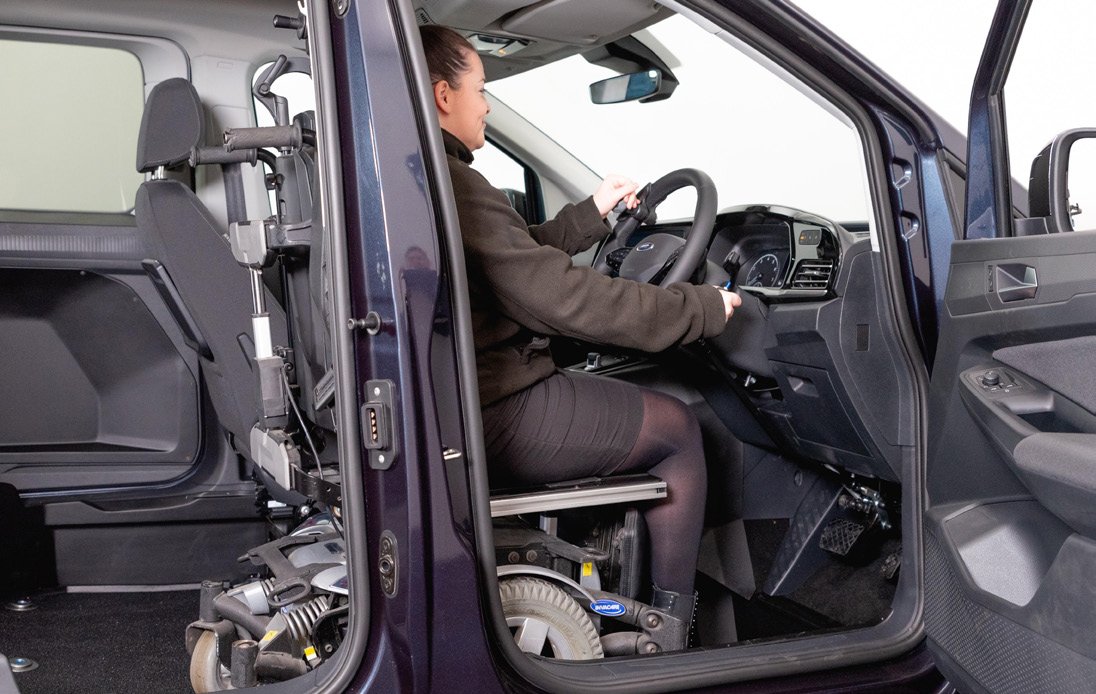

    Driver at the wheel of the Avance, driving from a wheelchair

    Roll in, dock and drive.

    The interchangeable front seat comes out, so you can drive from your own wheelchair or power chair. There’s a designated safe zone for a docking station to hold your chair securely while you drive.

    • 720 mmFloor to steering wheel
    • 1,345 mmHeadroom at the front position
    • 1,355 mmFront position width
    • 1,410 mmFront position length

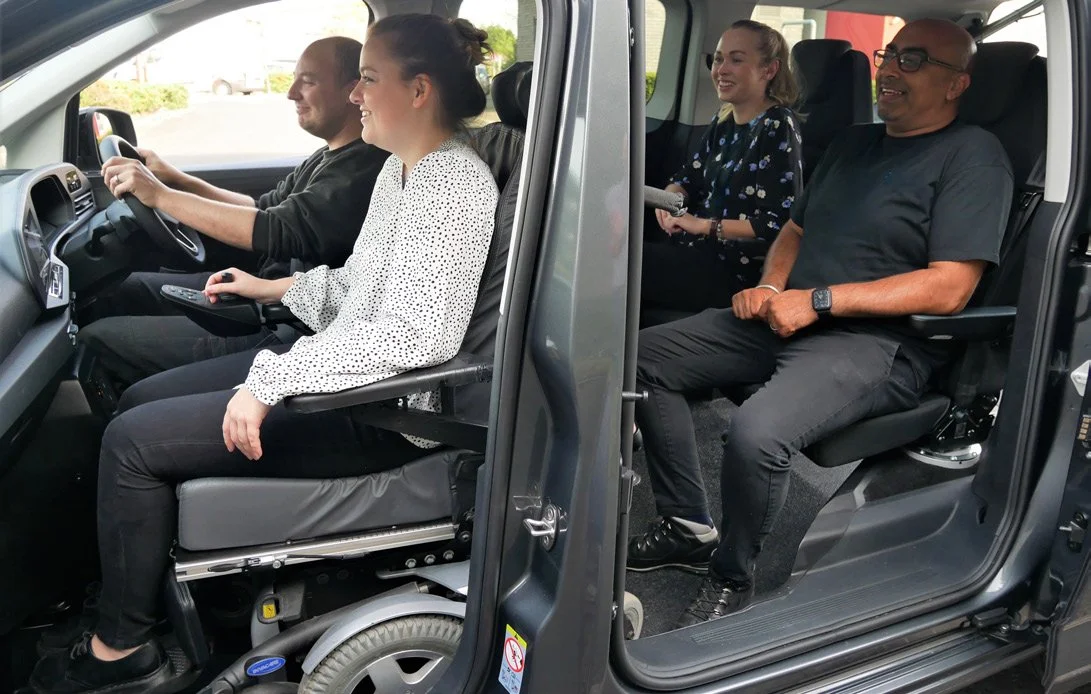

    Wheelchair user riding up front beside the driver, with passengers in row two

    The best seat in the house.

    Prefer not to drive? Travel up front beside the driver, with the same view and the same conversation as everyone else. The interchangeable seat moves across, so the front wheelchair position works for driving or riding.

    • 1,250 mmSeated eye line, front
    • 1,345 mmHeadroom at the front position
    • 1,355 mmFront position width
    • Easy-reachLap and diagonal seat belt

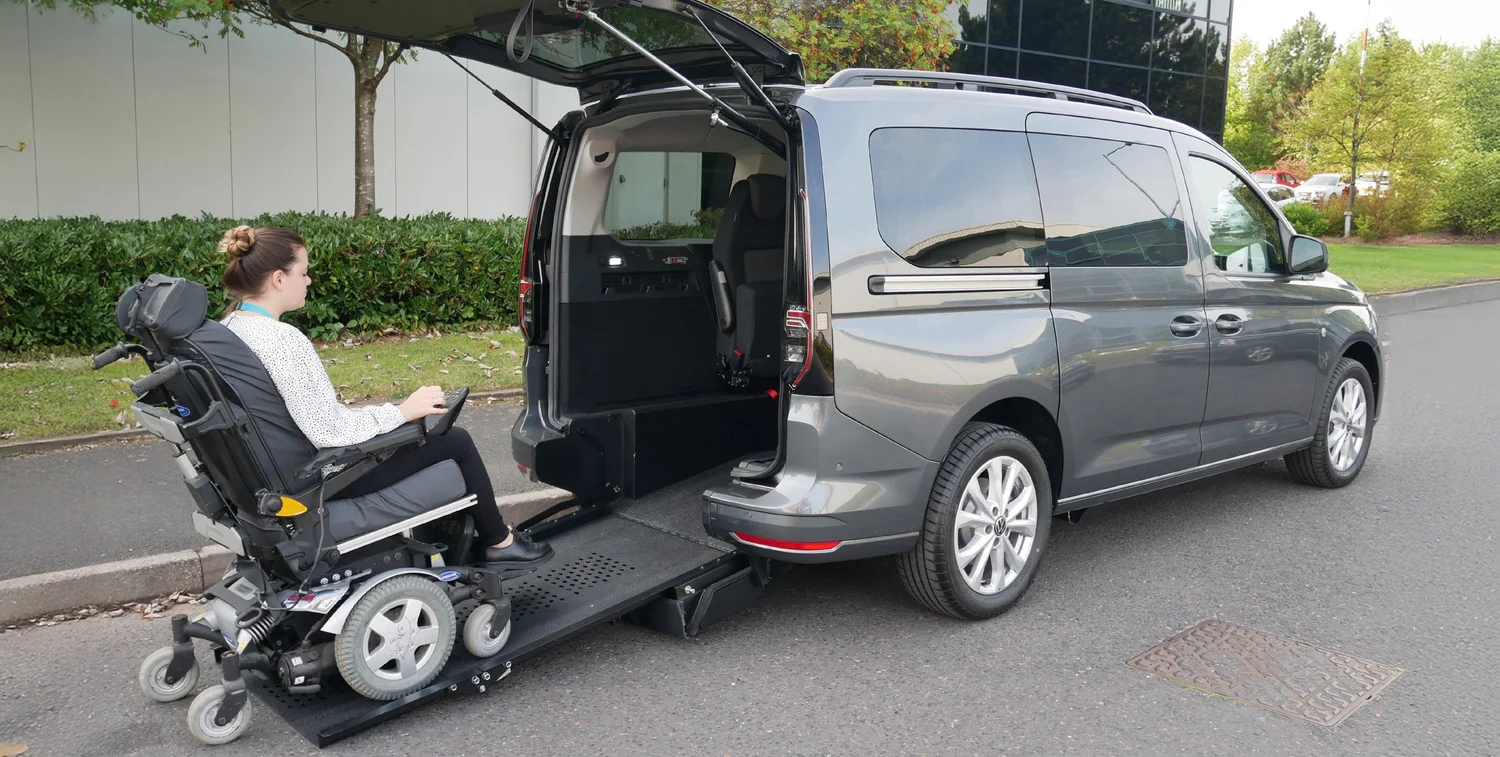

    Power chair user boarding the Avance via the rear ramp

    Room for the whole crew.

    Choose the rear wheelchair position and keep two tip & turn seats in row two. They fold up and out of the way whenever you need the floor space.

    • 1,430 mmHeadroom at the rear position
    • 1,230 mmSeated eye line, rear
    • 1,150 mmRear position length
    • 790 mmRear position width

    KEY FEATURES

    Designed around access.

    Every detail of the Ford Connect Avance™ is built to make getting in, getting settled and getting going, easier.

    Automated tailgate and ramp

    Opens at the touch of a button, with a manual override as back-up. The 1,230 mm ramp sits at a gentle 9.5° angle.

    Docking-station ready

    A designated safe zone for a docking station. QLK tested; Dahl testing pending.

    Tip & turn seating

    Two tip & turn seats in row two as standard. Fold them up to free the floor, or add a third in row three.

    Fully lowered floor

    A flat, fully lowered floor that’s easy to manoeuvre on and easy to clean.

    Interchangeable front seat

    Drive from your chair, or swap the seat across to ride as passenger. Two fixed front seats are also available.

    Easy-reach seat belt

    Lap and diagonal belt positioned so it’s simple to reach and fasten from your chair.

    SPECIFICATIONS

    Full specs.

    MEASUREMENTS

    Getting in

    Door opening height
    1,490mm
    Max seated head height at the door
    1,470mm
    Max eye line at the door
    1,370mm
    Ramp length
    1,230mm
    Ramp width
    740mm
    Ramp angle
    9.5°

    VEHICLE DETAILS

    Where the wheelchair travels

    All in mmFrontRear
    Space width1,355790
    Space length1,4101,150
    Headroom1,3451,430
    Seated eye line1,2501,230
    Floor to steering wheel720–

    Front: drive from your chair or ride beside the driver. Rear: travel behind the front seats.

    The vehicle

    Make
    Ford
    Model
    Tourneo Connect
    Variant
    Titanium L2 · Avance™ wheelchair-accessible conversion
    Year
    To be confirmed
    Engine
    To be confirmed
    Fuel type
    Petrol
    Transmission
    Automatic

    Wheelchair access

    Seats
    Up to 4 seats
    Wheelchair spaces
    1–2 wheelchair spaces
    Entry
    Rear entry
    Ramp or lift
    Automated tailgate and ramp with manual override · 1,230 × 740 mm · 9.5°
    Seating layout
    Interchangeable front driver/passenger seat (or two fixed front seats) · two tip & turn seats in row two · optional third in row three
    Restraints and docking
    Docking-station safe zone (QLK tested, Dahl pending) · easy-reach lap and diagonal belt · manual tie-downs for optional second wheelchair position

    Vehicle size

    Length
    4,853mm
    Width, including mirrors
    2,100mm
    Height
    1,855mm
    Wheelbase
    2,970mm
    Gross vehicle weight
    2,350–2,450kg

    Condition summary

    New

    Brand-new vehicle with a brand-new Avance™ wheelchair-accessible conversion.

    Odometer
    To be confirmed
    Previous owners
    None
    Conversion
    New
    Service history
    Not applicable

    Standard Ford equipment

    • 10″ media centre with Apple CarPlay & Android Auto
    • GPS navigation
    • Air conditioning
    • Front and rear parking sensors
    • Electric windscreen defroster
    • Alloy wheels and roof rails

    FIT CHECK

    Will my wheelchair fit?

    Enter a few measurements and we’ll compare them with the Avance’s figures. It takes about two minutes with a tape measure.

    How will you travel?
    Your measurements
    Floor to top of head, sitting in your chair
    mm
    Widest point, including wheels and push rims
    mm
    Front of footplates to the very back of the chair
    mm
    Floor to top of your knees or thighs
    mm
    How to measure
    • Sit in your chair as you would to travel, on a flat floor.
    • Measure head height with a straight edge across the top of your head.
    • For width, measure across the widest part, usually the push rims.
    • Include anything that sticks out, like footplates, joysticks or headrests.

    Your results will show here

    Start with seated head height. Results update as you type, and nothing is sent anywhere.

    OPTIONAL EXTRAS

    Make it yours.

    Tailor the vehicle to the people who’ll use it every day. We’ll help you choose what fits.

    Third tip & turn seat

    Add another tip & turn seat in row three for one more passenger.

    Second wheelchair position

    Add a wheelchair position in row two, with manual tie-downs.

    Docking station

    Fitted in the designated safe zone. QLK tested; Dahl testing pending.

    Not sure which options you need? Give us a call to discuss the best fit for you.

    Two fixed front seats

    Option to put two fixed seats instead of the interchangeable seat.
